PPA5500 – Precision Power Analyzer

Power Analyzer delivering the Highest Precision and Speed

In September 2006, the launch of our PPA2500 Power Analyzer introduced leading power measurement performance in a compact, cost effective instrument that quickly developed a reputation for exceptional accuracy and stability in the most demanding of power applications. Now, the PPA5500 series extends our power analysis range still further for those who need the ultimate power analysis product, this is the top of the range model offered by N4L and rightly deserves its place.

While maintaining the wide frequency range and exceptional noise rejection for which the PPA2500 has become renowned, the PPA5500 series add increased voltage and current measurement ranges, greater processing power, increased memory, real time clock, high contrast color display, 1GB non-volatile internal memory and external USB memory port. A 2MS/s sample rate, alongside “True Real Time” no gap analysis are a formidable combination for the analysis of power, this – along with innovative analogue front end design which includes our proprietary “Planar shunt technology“, the PPA5500 provides truly exceptional measurement stability and accuracy. The phase angle accuracy of the PPA5500 is 0.005 degrees, this is perfect for transformer loss analysis testing at very low power factors. Please take a look at our Power Analyzer Tutorial Series which demonstrated the speed and versatility of the PPA5500.

All PPA5500 units are supplied with UKAS ISO17025 certification as standard, this is performed at N4L in the UK in our accredited ISO17025 Laboratory.

Product Images

ISO17025 Calibration and Verification

Every PPA5500 Power Analyzer supplied by N4L is provided with both a UKAS Accredited calibration certificate up to 850Hz, as well as a UKAS Traceable calibration certificate up to 2MHz. N4L have developed a number of bespoke power calibrators in order to verify the accuracy of every power analyzer supplied over its entire frequency range, this is surprisingly uncommon within the instrumentation industry. Furthermore, development of an ISO17025 (UKAS) accredited Closed Loop Calorimeter in partnership with Oxford University (UK) has verified the performance of the N4L custom designed power calibration rigs with a very low uncertainty level, providing absolute confidence that the wide band performance of all N4L power analyzers is market leading.

PPA5500-HF ISO17025 UKAS Calorimetry Certificate available upon request. For more information please contact us at [email protected]

Calibration Options

1. Standard Recalibration – Included with new instruments – Included with RMA Calibration
Wideband calibration (DC-2MHz) with optimisation of measurements on all ranges over the complete instrument bandwidth. Traceable to UKAS but not ‘accredited’.
4. UKAS IEC61000 H+F Calibration – Optional with new instruments or RMA calibration
UKAS accredited calibration of PPA55x1 series units that includes all prevailing type test protocols for fully compliant Harmonic and Flicker testing.
This option can only be specified in addition to option 1 and option 2 calibration.
2. UKAS (ISO17025) Calibration – Included with new instruments – Optional with RMA Calibration
UKAS Accredited calibration of Voltage, Current, Phase (PF) and Power on all ranges from 55-850Hz.
In addition to the calibration certificates, the PPA will be fitted with a UKAS calibration label. This option can only be specified in addition to option 1.


5. PPA55xx-TE Calibration – Included with PPA-TE order – Optional with RMA Calibration
UKAS calibration that includes a series of low power factor tests down to 0.01 PF over the frequency range of 16-450Hz.
This option can only be specified in addition to option 1 and option 2 calibration

3. System Calibration – Optional with new instruments or RMA calibration
UKAS accredited calibration of a PPA together with an external sensor.
This option is separate to option 1 & 2 which must both be specified in addition when system calibration is required.
Note: This is end-to-end calibration of the of the PPA+sensor ‘system’ at nine N4L defined test points. (3 current levels @ 3 different frequencies)
6. UKAS calorimeter power calibration – Optional with new instruments or RMA calibration
UKAS accredited power calibration via calorimetry. Available at customer requested frequency(s) and with sinusoidal or harmonically distorted wave shapes within a frequency range of 45Hz to 2MHz.
This option can only be specified in addition to option 1 and option 2 calibration

Features & Benefits

0.01% Basic accuracy Frequency range DC and 10mHz to 2MHz
High precision internal shunts Superior accuracy to any external shunt 5 millidegree phase accuracy necessary for low power factor applications
Up to 50 Arms (1000 Apk) & 1000 Vrms (3000 Vpk) direct input Low current (10Arms), Standard (30Arms) and High current (50Arms) options
High speed sampling on all channels True real time analysis with no measurement gap

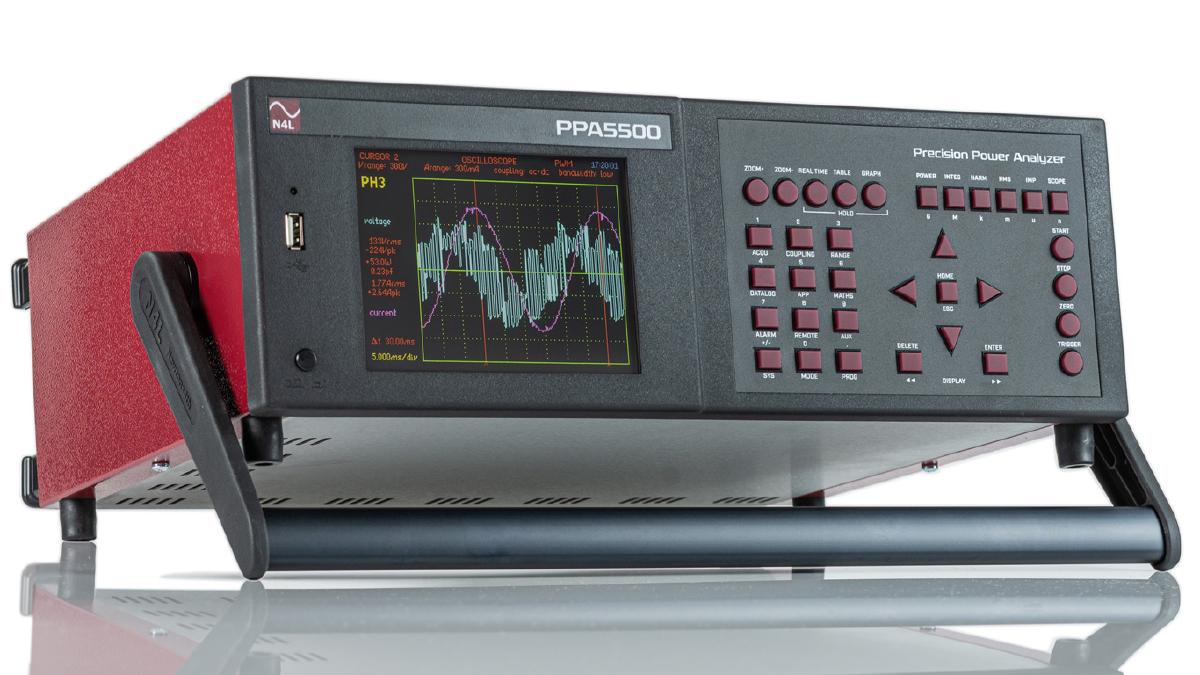

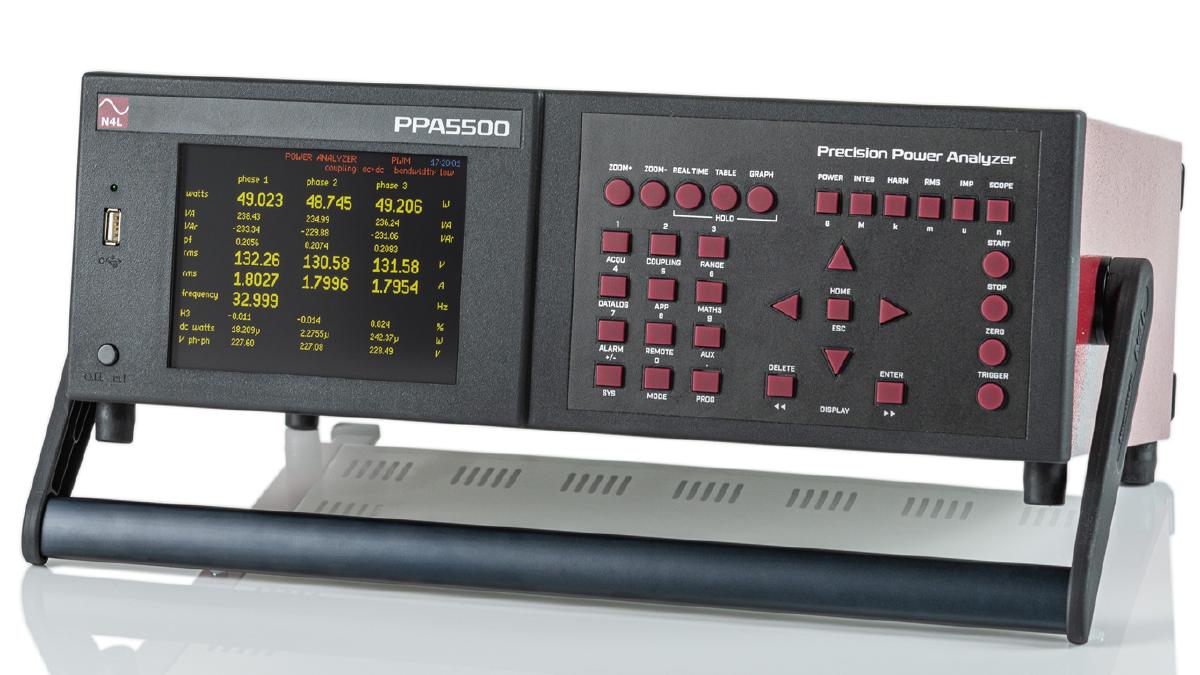

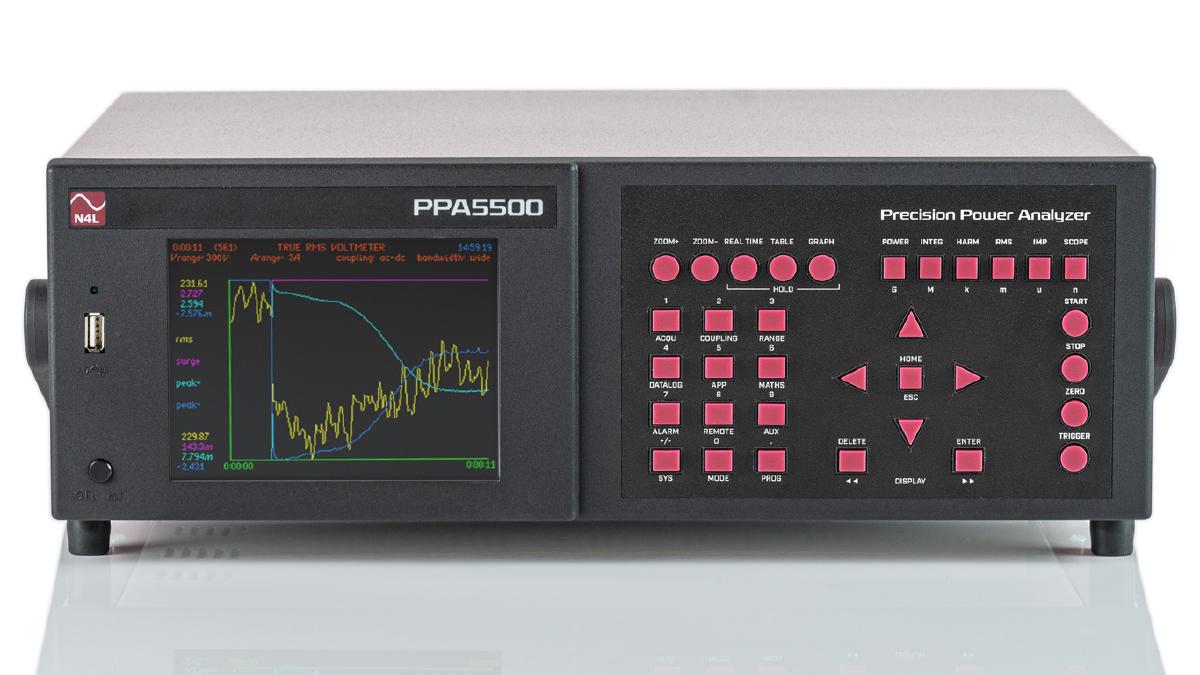

1, 2 or 3 phase versions master – slave mode for 4, 5 or 6 phase Real time Digital, Tabular, Graphic and Oscilloscope displays

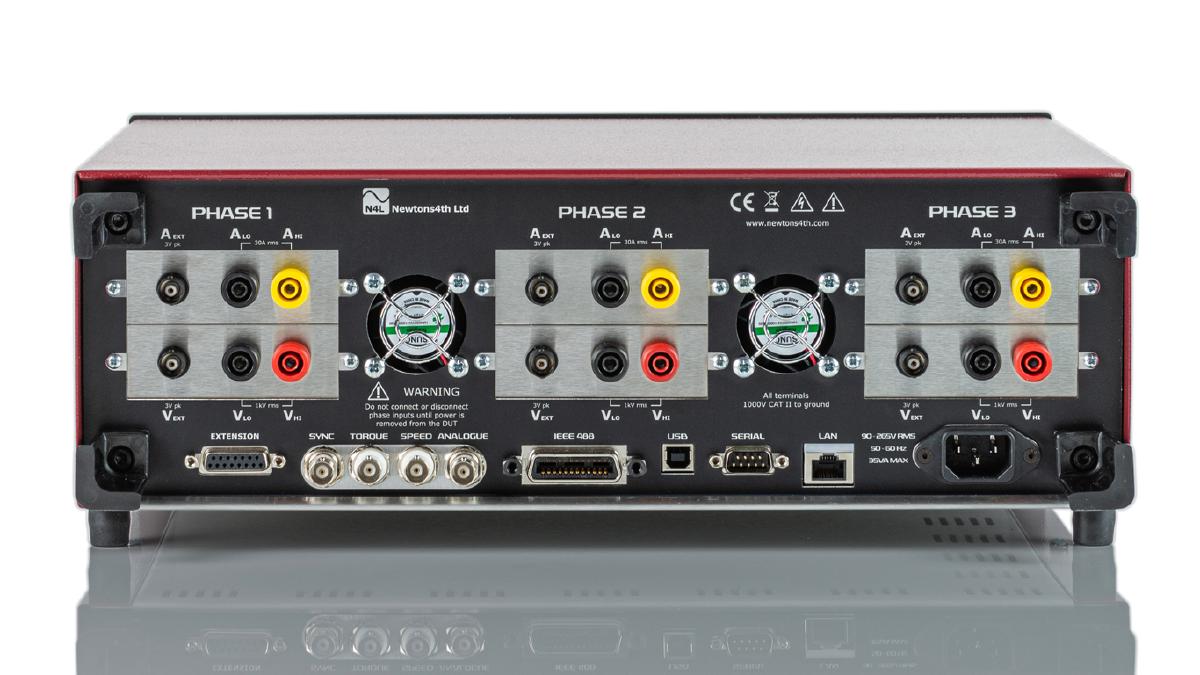

Simple BNC connection of N4L shunts for high current applications RS232, IEEE 488, USB, LAN, Torque, Speed and Extension ports

Brochure  Documentation
PPA45_5500 Black Brochure PDF, 6Mb PPA5500 User Manual v4 PDF, 2Mb
Precision Power Analyzer Design Philosophies PDF 3.1Mb PPA5500 Comms Manual v4 PDF, 840kb
PPA55xx Rack Dimensions PDF, 225kb  PPA55 Start up Manual v4PDF, 3.58Mb
PPA55xx-Dimensions PDF, 85kb Power_Analyzer_Product_Selector PDF, 236kb
PPA Datalogger User Manual PDF, 3.1Mb
Calibration Guide

PPA5500

PPA5500 Options, Software and Accessories

COMMS_ICON Communications Interfaces:
  • Standard: LAN, USB, RS232 and GPIB Communication Ports
PROBE_ICON Probes and Probe Accessory Options:
  • ULCP Ultra Low Capacitance Probes (Active, For use with DUT’s susceptible to capacitive loading) – 1.5pF, 1000Vrms, dc to 2MHz, 1000:1
  • TT-HV 250 High Voltage Probe (Passive) – 2.5kVpk, 100:1
  • TT-HVP 15HF High Voltage Probe – 15kVpk, 1000:1
  • ATT20 – 20:1 Attenuator (For use when voltage probe output does not meet PPA ext. input 3Vpk max rating) – For connection to PPA ext input and external attenuating probes.
EXTENSION_ICON Extension Port and Accessory Options:
  • ADI40 40 Channel Analogue <> Digital IO Interface
  • PCIS – Phase controlled inrush for (Use when control of DUT source with respect to phase angle is required
CONNECTOR_ICON Leads, Connection and Interface Options:
  • 20A Connection lead set for one phase (supplied as standard) – 20Arated, 1.5m long + Alligator Clips
  • 36A Connection lead set for one phase – 36A rated, 1.5m long + Alligator Clips
  • Voltage Breakout Lead set – 3 x 2m BNC to BNC with 4mm Banana Voltage break out leads + 2 x voltage low shorting leads (For use when distance between analyser and DUT is large and HF series external shunt is being used, facilitates short voltage connections.
  • Universal Breakout Box – Single Phase 10Arms Universal Breakout box
  • RS232 Cable (Supplied as Standard) – 9 Pin null modem cable
  • USB Cable (Supplied as standard) – 2m long A Male to B Male USB Cable
CASES_ICON Carry Cases:
  • PPA45/55xx Soft Carry Case – Black Nylon Padded Case with accessory space, handle and strap
  • PPA45/55xx Hard Carry Case – PPA45/55xx Hard Aluminium Flight Case with accessory space, handle and lock (Ideal for Aircraft Hold)
RACK_ICON Rack Mounting Kit Options:
CALIBRATION_ICON Calibration and Documentation (Unit supplied with UKAS ISO17025 certificate as standard when new):
  • Standard Recalibration (ISO17025 Traceable) – Single Phase PPA (PPA5510)
  • Standard Recalibration (ISO17025 Traceable) – Two and Three Phase PPA (PPA5520 & PPA5530)
  • ISO17025 UKAS Calibration + Standard Calibration – Single Phase PPA (PPA5510)
  • ISO17025 UKAS Calibration + Standard Calibration – Single Phase PPA (PPA5520 & PPA5530)
  • PPA55xx Loan Instrument available upon request during Calibration or Repair (Available in Europe only)
  • Spare set of user manuals – Hard copy of user and communications manual
CLAMP_ICON Current Measurement Options:
PC_ICON PC Software (Free of charge):
    For all Software Downloads please visit the “SUPPORT” section of our website.
  • PPALoG – Power Analysis Data Logging Software (Up to 64 Parameter simultaneous measurement, up to 12 Phases) (PPA Datalogger User Manual PDF, 3.1Mb)
  • PPA Standby Power Software – IEC62301 & EN50564 Compliant (Standby Power User Manual PDF, 2Mb)
  • IECSoft Harmonics and Flicker (IEC61000-3-2/3-3/3-11/3-12) Software

Application Notes and Related Articles

Video Tutorials

Tutorial 1 : Power Analyzer Turn on and External Shunt Configuration

Tutorial 2 : PWM Motor Drive Efficiency Measurements

Tutorial 2a : PWM Motor Driver Efficiency Measurements (Extended version)

Tutorial 3 : Standby Power Measurement of a USB Mains Adaptor

Tutorial 4 : AC/DC Converter Efficiency Measurements

Application Notes

For application notes please see the app note section of our Knowledge Database

Parameter
Frequency Range
Bandwidth PPA5500(30Arms), PPA5500-LC(10Arms) DC, 10mHz ~ 2MHz

PPA5500-HC(50Arms) : DC, 10mHz ~ 1MHz

Voltage Input
Internal Ranges Normal : 300mVpk ~ 3000Vpk (9 ranges = 300mV, 1V, 3V, 10V, 30V, 100V, 300V, 1KV, 3KV)

(240Vrms within 300Vpk range, using 20% over range)

Internal Accuracy Normal : 0.01% Rdg + 0.038% Rng + (0.004% x kHz) + 5mV
Internal Voltage Input Impedance 3Mohm in parallel with 5pF, 90pF common mode to chassis
External Voltage BNC Input Ranges 300uVpk ~ 3Vpk [BNC Connector 3Vpk Max Input] 9 Ranges = 300uV, 1mV, 3mV, 10mV, 30mV, 100mV, 300mV, 1V, 3V
External Voltage Input Accuracy 0.01% Rdg + 0.038% Rng + (0.004%xkHz) + 3uV
External Voltage Input Impedance 1Mohm in parallel with 40pF, 90pF common mode to chassis
Current Input
PPA5500-LC 10Arms Shunt, 4mm Safety Connectors 3mApk ~ 30Apk (10Arms) (9 ranges = 3mA, 10mA, 30mA, 100mA, 300mA, 1A, 3A, 10A, 30A)
PPA5500 30Arms Shunt, 4mm Safety Connectors 30mApk ~ 300Apk (30Arms) (9 ranges = 30mA, 100mA, 300mA, 1A, 3A, 10A, 30A, 100A, 300A)
PPA5500-HC 50Arms Shunt, 50A Screw Type Safety Terminals 100mApk ~ 1000Apk (50Arms) (9 ranges = 100mA, 300mA, 1A, 3A, 10A, 30A, 100A, 300A, 1KA)
Internal Shunt Accuracy PPA5500-LC : 0.01% Rdg + 0.038% Rng + 0.004%xkHz + 30uA

PPA5500 : 0.01% Rdg + 0.038% Rng + 0.004%xkHz + 300uA

PPA5500-HC : 0.01% Rdg + 0.038% Rng + 0.004%xkHz + 900uA

External Current BNC Input Ranges 300uVpk ~ 3Vpk [BNC Connector 3Vpk Max Input] 9 Ranges = 300uV, 1mV, 3mV, 10mV, 30mV, 100mV, 300mV, 1V, 3V
External Current Input Accuracy 0.01% Rdg + 0.038% Rng + (0.004%/kHz) + 3uV
Phase Accuracy
Degrees PPA5500-LC(10Arms) / PPA5500(30Arms) : 0.005deg + (0.01deg/kHz)

PPA5500-HC(50Arms) : 0.01deg + (0.02deg/kHz)

Power Accuracy
10mHz ~ 2MHz [0.03%+0.03%/pf+(0.005%×kHz)/pf] Rdg+0.03%VA Rng
40Hz ~ 850Hz [0.02%+0.03%/pf+(0.005%×kHz)/pf] Rdg+0.01%VA Rng
16Hz ~ 450Hz Low PF See PPA5500-TE Brochure
General
Crest Factor 20 (Voltage and Current)
Sample Rate 2.2Ms/s on all channels, real time No-Gap
IEC Compliant Modes Pre Compliant : IEC61000-3-2, IEC61000-3-3, IEC61000-3-11, IEC61000-3-12

Fully Compliant : IEC62301/EN50564 Standby Power Mode

Application Modes PWM Motor Drive, Harmonics and Flicker, Transformer, TTV105 (Airbus ADB0100 Inter harmonics), Ballast, Inrush, Standby Power
CMRR – Common Mode Rejection Ratio 250V @ 50Hz – ≥ 1mA (150dB) 100V @ 100kHz – ≥ 3mA (130dB)
Measurement Parameters W, VA, Var, pf, V & A – rms, rectified mean, AC, DC, peak, surge, crest factor, form factor, star to delta conversion, delta to star conversion
Frequency (Hz), Phase (deg), Fundamentals, Impedance
Harmonics, THD, TIF, THF, TRD, TDD
Integrated Values, Datalog, Sum and Neutral Values
Datalog (Up to 4 user selectable measurement functions (60 with PC software)
Datalog window No-Gap analysis, Minimum Window 2ms
Memory RAM up to 10M records into flash RAM (Non Volatile)
Communication Ports RS232, LAN, USB, GPIB, Extension (Aux)
Standard Accessories
Leads Power, RS232, USB
Connection Cables 36A 1.5m long 4mm stackable terminals. 1x red, 1x yellow, 2x black per phase (1x red, 1x black per phase with HC version)
Connection Clips 4mm terminated alligator clips – 1x red, 1x yellow and 2x black per phase (1x red, 1x black per phase with HC version)
Instruction manual User manual, Communications manual
Other documents Calibration certificate, Quick start guide
Mechanical and Environmental
Display 320×240 dot full colour TFT, White LED backlit
Dimensions 130H x 400W x 315D mm excluding feet
Weight 5.4kg (1 Phase), 6kg (3 Phase)
Safety Isolation 1000Vrms or DC (CATII), 600Vrms or DC (CATIII)
Power Supply 90 ~ 265Vrms, 50 ~ 60Hz, 40VA Max
Operating Conditions 5 deg to 40 deg ambient temperature (or air intake temperature when rack mounted), 20-90% Non-condensing relative humidity.
