High Performance Compact Power Analyzers
The PPA500 joins Newtons4th’s Precision Power Analyzer range addressing a need for high performance power analyzer at low cost. Primarily aimed toward applications that require precision measurement without complex features, the PPA500 series is ideally suited to an education, production or test environment. The unit benefits from a full color TFT display that provides greater flexibility than fixed numeric displays and combines a level of performance, ease of use and value beyond any comparable product.
Sharing many of the techniques utilised in the PPA1500 series, the PPA500 achieves a level of performance previously available only in much more costly instruments, while maintaining the intuitive operation and clarity of measurement presentation for which the PPA series has become renowned. While being only half rack width and 2U high, the PPA500 is available in 1, 2 or 3 phase configurations. There is also the option to install the unit in a 19in rack where two units can be positioned side by side to provide a 2U 6 Phase solution see our accessories page for more details.
As a result of innovative design, the PPA500 compact power analyzer is able to deliver high performance at low cost. Features such as the planar shunt (A shunt design topology developed by N4L) and FPGA based real time no gap analysis technique all contribute to the PPA500’s fantastic offering. The low cost of the PPA500 Power Analyzer presents a great opportunity to system integrators looking for accurate, traceable, reliable power analysis.
All PPA500 units are supplied with UKAS ISO17025 certification as standard, this is performed at N4L in the UK in our accredited ISO17025 Laboratory.

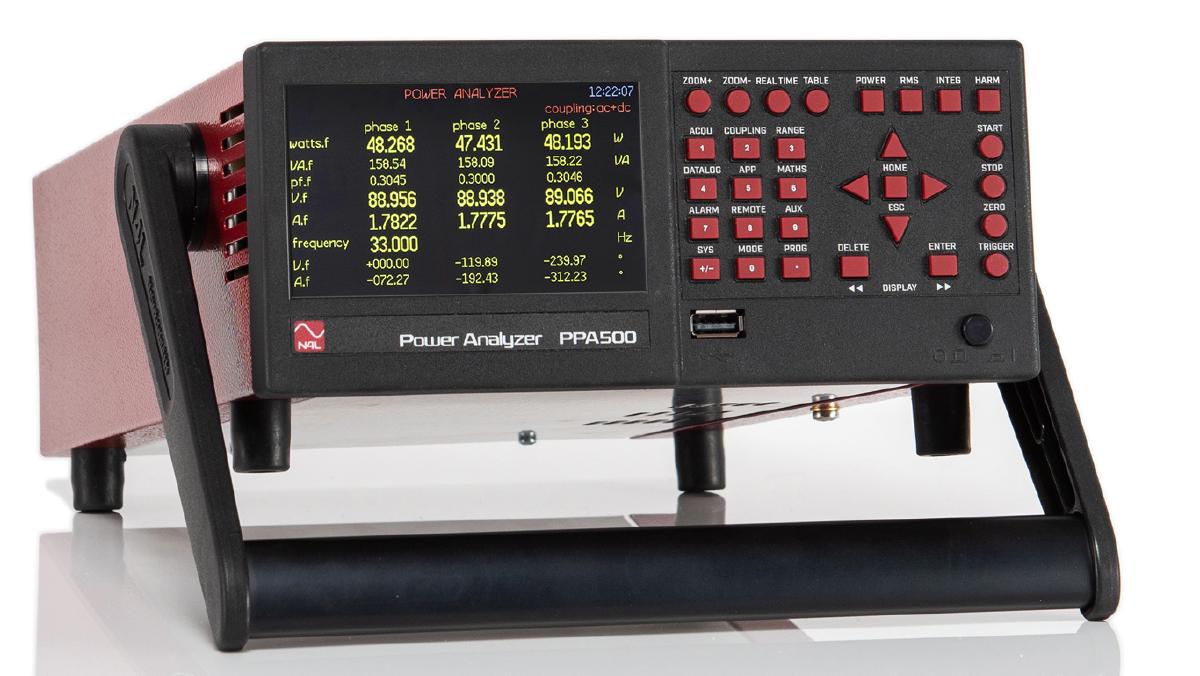

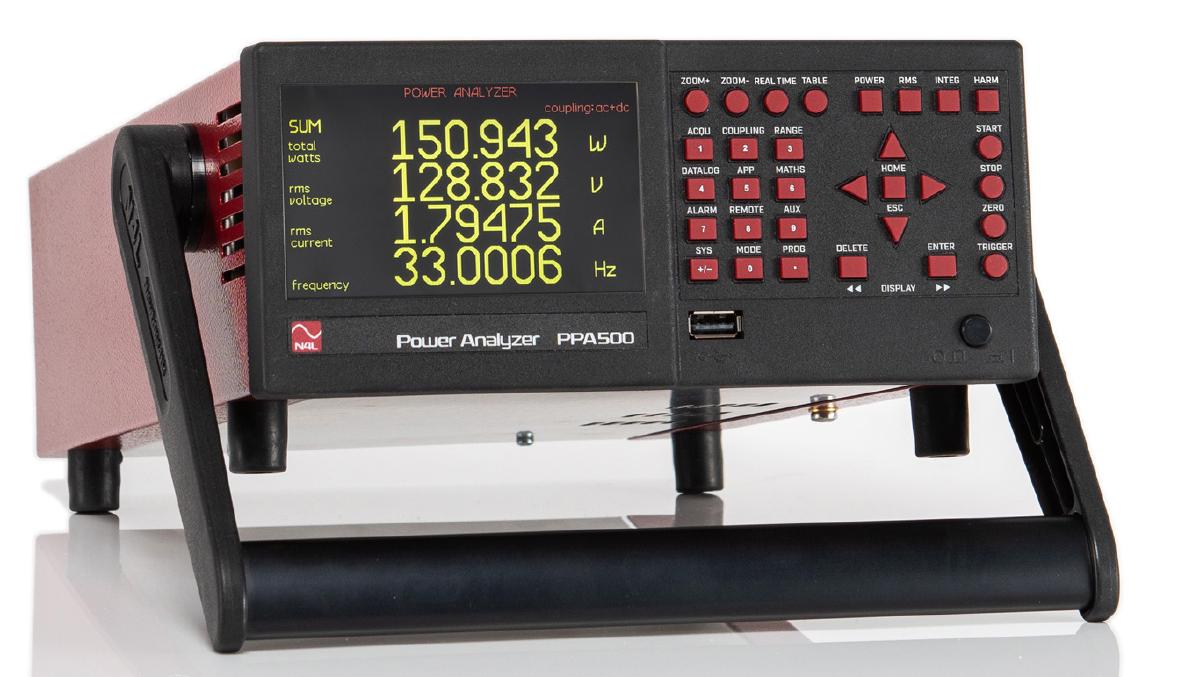

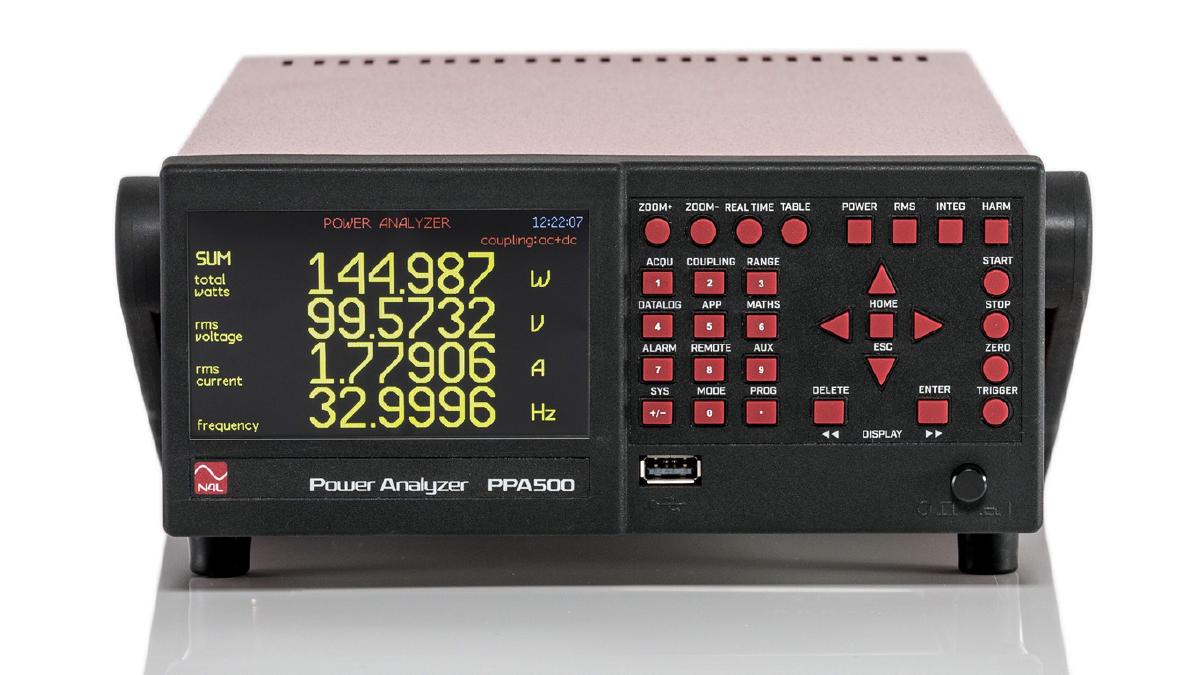

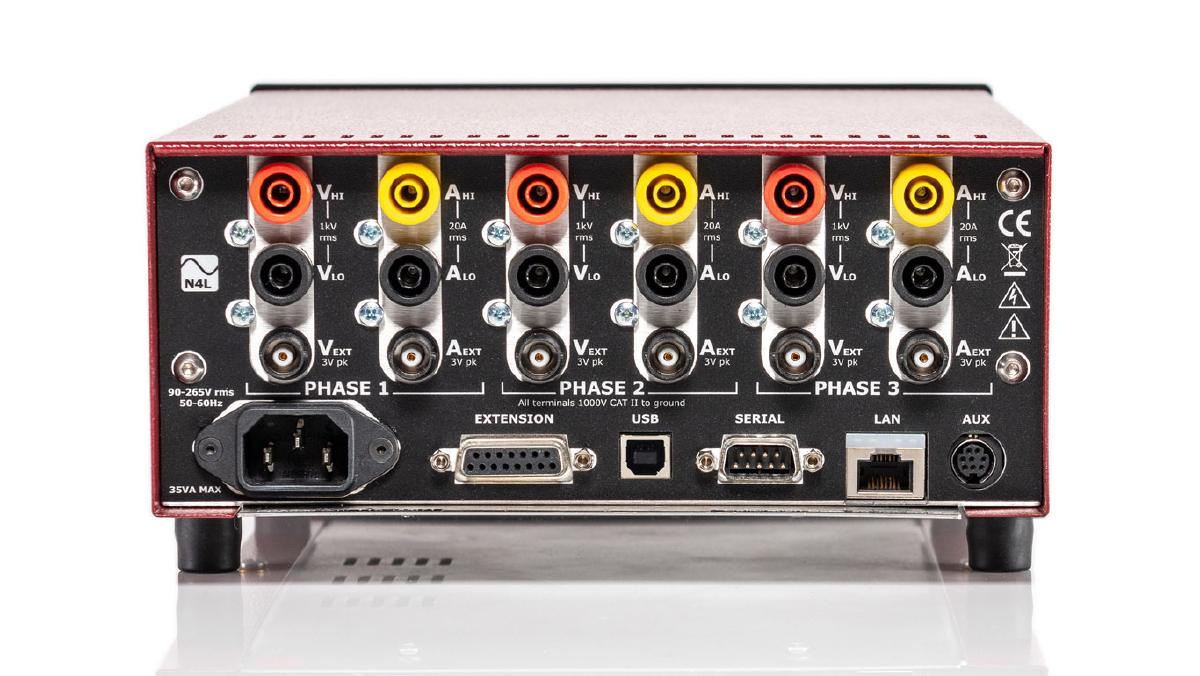

Product Images
ISO17025 Calibration and Verification
Every PPA500 Power Analyzer supplied by N4L is provided with both a UKAS Accredited calibration certificate up to 850Hz, as well as a UKAS Traceable calibration certificate up to 500kHz. N4L have developed a number of bespoke power calibrators in order to verify the accuracy of every power analyzer supplied over its entire frequency range, this is surprisingly uncommon within the instrumentation industry. Furthermore, development of an (UKAS) accredited Closed Loop Calorimeter in partnership with Oxford University (UK) has verified the performance of the N4L custom designed power calibration rigs with a very low uncertainty level, providing absolute confidence that the wide band performance of all N4L power analyzers is market leading.
Calibration Options
| 1. Standard Recalibration – Included with new instruments – Included with RMA Calibration Wideband calibration (DC-2MHz) with optimisation of measurements on all ranges over the complete instrument bandwidth. Traceable to UKAS but not ‘accredited’. | 4. UKAS IEC61000 H+F Calibration – Optional with new instruments or RMA calibration UKAS accredited calibration of PPA55x1 series units that includes all prevailing type test protocols for fully compliant Harmonic and Flicker testing. This option can only be specified in addition to option 1 and option 2 calibration. |
| 2. UKAS (ISO17025) Calibration – Included with new instruments – Optional with RMA Calibration UKAS Accredited calibration of Voltage, Current, Phase (PF) and Power on all ranges from 55-850Hz. In addition to the calibration certificates, the PPA will be fitted with a UKAS calibration label. This option can only be specified in addition to option 1. | 5. PPA55xx-TE Calibration – Included with PPA-TE order – Optional with RMA Calibration UKAS calibration that includes a series of low power factor tests down to 0.01 PF over the frequency range of 16-450Hz. This option can only be specified in addition to option 1 and option 2 calibration |
| 3. System Calibration – Optional with new instruments or RMA calibration UKAS accredited calibration of a PPA together with an external sensor. This option is separate to option 1 & 2 which must both be specified in addition when system calibration is required. Note: This is end-to-end calibration of the of the PPA+sensor ‘system’ at nine N4L defined test points. (3 current levels @ 3 different frequencies) | 6. UKAS calorimeter power calibration – Optional with new instruments or RMA calibration UKAS accredited power calibration via calorimetry. Available at customer requested frequency(s) and with sinusoidal or harmonically distorted wave shapes within a frequency range of 45Hz to 2MHz. This option can only be specified in addition to option 1 and option 2 calibration |
Features & Benefits
| 0.05% Basic accuracy (Traceable to ISO17025) | Frequency range DC and 10mHz to 500kHz |
| High precision internal shunts Superior accuracy to any external shunt | 10 milli degree phase accuracy – Necessary for low power factor applications |
| 20 Arms (300 Apk) & 1000 Vrms (2500 Vpk) direct input | Unique x10 gain mode for Standby Power measurement |
| High speed sampling on all channels | True real time analysis with no measurement gap |
| 1, 2 or 3 phase versions | High contrast full colour graphic display |
| Simple BNC connection of N4L shunts for high current applications | RS232, USB, LAN, Extension and Auxiliary ports |
