PPA3500 – 3 ~ 6 Phase Power Analyzer

High Performance 6 Phase Power Analysis

The PPA3500 is a high accuracy 3~6 phase power analyzer able to perform reliable, accurate power analysis in a variety of applications. As a result of innovative analogue card design, the PPA3500 is packaged in a compact 2U chassis. The PPA3500 is available in 3, 4, 5 or 6 phase configurations. There is also the option to install the unit in a 19in rack providing a 2U 6 Phase solution, see our accessories page for more details. The PPA3500 power analyzer benefits from a full color “Dual” TFT display, this concept employs two TFT displays within one instrument, allowing for a large widescreen display area in a 2U form factor.

newtons 4th ukas iso17025 logo

Why choose a Newtons4th Power Analyzer?

  • Only Power Analyzer in market designed specifically for inverter drive applications
  • Best Wideband Power Accuracy in class
  • 1MHz Bandwidth
  • Extremely high accuracy phase measurement of 0.01deg
  • ISO17025 (UKAS) traceable certification supplied
  • Low profile – 2U High, up to 6 Phase measurement
  • Unrivaled product support
  • PWM Motor drive mode for quick easy setup

All required inputs included as Standard

The PPA3500 includes all ports fitted as standard including Internal(4mm) and External(BNC), Torque, Speed, RS232, LAN, USB, GPIB.

Example Applications

  • PWM Inverter Drive Efficiency Analysis
  • Standby Power
  • AC/DC Converters
  • Solar Arrays
  • UPS
  • Power Quality
  • High Frequency Power Electronics

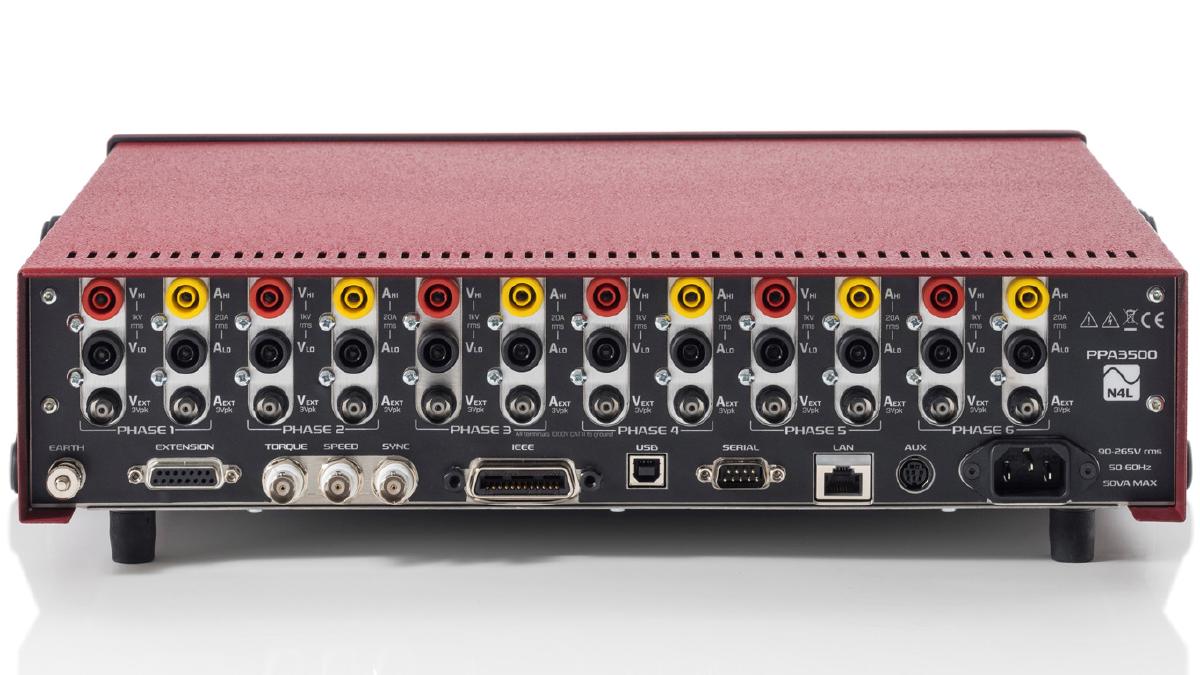

ppa3500 6 phase power analyzer rear connections

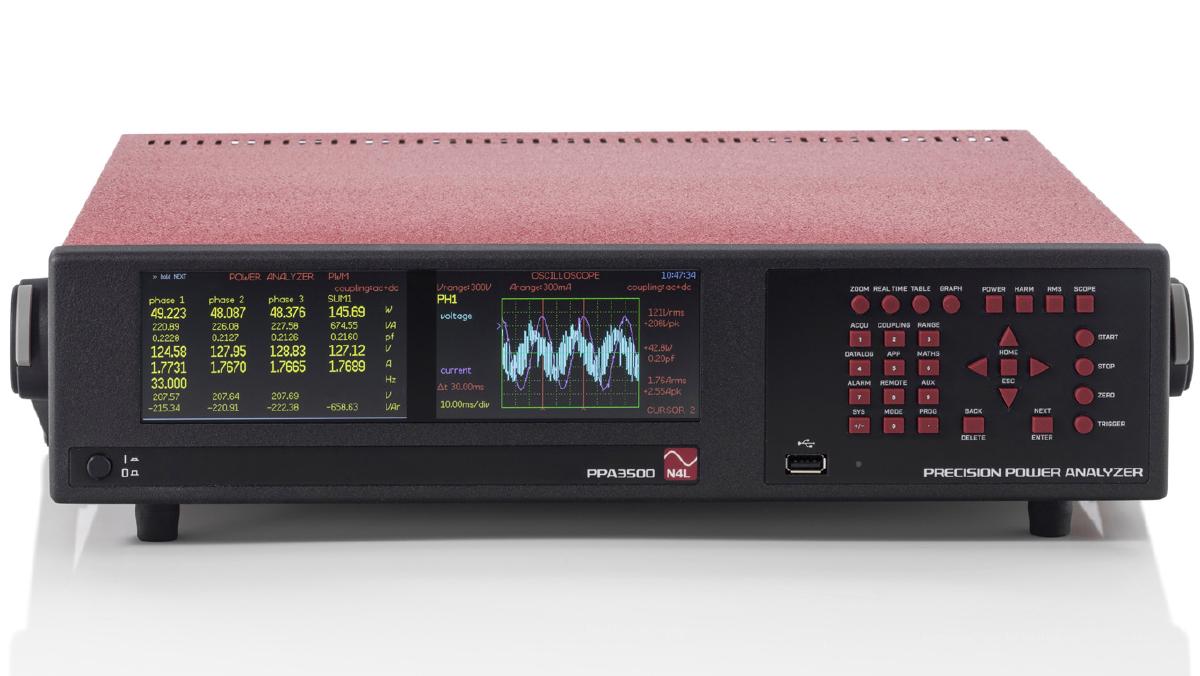

n4l ppa3500 6 phase power analyzer dual display configured in 3 phase 3 watt meter mode

Proprietary Technology

Featuring the industry renowned planar shunt technology (A shunt design topology developed by N4L) and FPGA based real time no gap analysis techniques, the PPA3500 is able to provide ground breaking 6 phase analysis performance. Real-Time no gap analysis ensures efficiency measurements are entirely synchronized between input and output.

All PPA3500 units are supplied with UKAS ISO17025 certification as standard, this is performed at N4L in the UK in our accredited ISO17025 Laboratory.

ISO17025 Calibration and Verification

Every PPA3500 Power Analyzer supplied by N4L is provided with both a UKAS Accredited calibration certificate up to 850Hz, as well as a UKAS Traceable calibration certificate up to 1MHz. N4L have developed a number of bespoke power calibrators in order to verify the accuracy of every power analyzer supplied over its entire frequency range, this is surprisingly uncommon within the instrumentation industry. Furthermore, development of an ISO17025 (UKAS) accredited Closed Loop Calorimeter in partnership with Oxford University (UK) has verified the performance of the N4L custom designed power calibration rigs with a very low uncertainty level, providing absolute confidence that the wide band performance of all N4L power analyzers is market leading.

n4l ppa3500 6 phase power analyzer dual display with power and scope mode

Calibration Options

1. Standard Recalibration - Included with new instruments – Included with RMA Calibration
Wideband calibration (DC-2MHz) with optimisation of measurements on all ranges over the complete instrument bandwidth. Traceable to UKAS but not ‘accredited’.
4. UKAS IEC61000 H+F Calibration - Optional with new instruments or RMA calibration
UKAS accredited calibration of PPA55x1 series units that includes all prevailing type test protocols for fully compliant Harmonic and Flicker testing.
This option can only be specified in addition to option 1 and option 2 calibration.
2. UKAS (ISO17025) Calibration - Included with new instruments – Optional with RMA Calibration
UKAS Accredited calibration of Voltage, Current, Phase (PF) and Power on all ranges from 55-850Hz.
In addition to the calibration certificates, the PPA will be fitted with a UKAS calibration label. This option can only be specified in addition to option 1.

5. PPA55xx-TE Calibration - Included with PPA-TE order – Optional with RMA Calibration
UKAS calibration that includes a series of low power factor tests down to 0.01 PF over the frequency range of 16-450Hz.
This option can only be specified in addition to option 1 and option 2 calibration

3. System Calibration - Optional with new instruments or RMA calibration
UKAS accredited calibration of a PPA together with an external sensor.
This option is separate to option 1 & 2 which must both be specified in addition when system calibration is required.
Note: This is end-to-end calibration of the of the PPA+sensor ‘system’ at nine N4L defined test points. (3 current levels @ 3 different frequencies)
6. UKAS calorimeter power calibration - Optional with new instruments or RMA calibration
UKAS accredited power calibration via calorimetry. Available at customer requested frequency(s) and with sinusoidal or harmonically distorted wave shapes within a frequency range of 45Hz to 2MHz.
This option can only be specified in addition to option 1 and option 2 calibration

Features & Benefits

PPA3500 Power Analyzer Product Overview
Excellent Accuracy 0.03% Typical
2U Form Factor The worlds only high accuracy 6 phase power analyzer in 2U form factor*
1MHz Bandwidth Wide Bandwidth ideal for distorted signal analysis such as PWM Inverter drives
Intuitive User Interface “Quick Keys” and alpha numerical keypad
Torque and Speed inputs fitted as standard +/- 10V, Analogue DC and Pulsed Inputs
Total System Efficiency Calculation Real time monitoring and efficiency calculation of Electrical to Electrical and Electrical to Mechanical
Ideal for Inverter Drive Analysis Electric Vehicle, Variable Speed Drives, Industrial and other applications
8 Phase Analysis Use 3P2W + CH3 + 3P2W + CH3 to measure 8 phases including 3 Phase Input Power, DC Bus and 3 Phase Output Power
DFT Based Power Calculation Utilize the Power of DFT Fourier analysis, made possible using top of the range DSPs and FPGAs.
3 Phase Power Measurement with only 2 Watt-meters Unique “3 Watt-meter conversion” mode provides independent phase power information when utilizing 3 Phase 2 watt-meter mode


PPA3500_Brochure PDF, 4.17Mb
PPA3500 Dimensions PDF, 76kb
PPA3500 Rack Dimensions PDF,65kb
PPA Datalogger User Manual PDF, 3.31Mb
Precision Power Analyzer design Philosophies PDF, 3.1Mb


PPA35xx User Manual v3.01PDF, 661kb
Register for Product Updates
Enter your email to register for firmware, software and other product related updates

PPA3500 Comms Manual v3.01 PDF, 650kb
Power_Analyzer_Product_Selector PDF, 236kb

*According to N4L research, accuracy of 0.1% or better

Full Instrument Specification

Frequency Range
DC, 10mHz ~ 1MHz

Range 1+2: DC, 10mHz ~ 100kHz

Voltage Input
Internal Ranges
Normal : 100mVpk ~ 2500Vpk (10 ranges = 100mV, 300mV, 1V, 3V, 10V, 30V, 100V, 300V, 1KV, 3KV)
Internal Accuracy
1V~3000Vpk: 0.04% Rdg + 0.1% Rng + (0.005% x kHz) + 5mV

100mV ~ 300mV : 0.04% Rdg + 0.1% Rng + (0.01% x kHz) + 1mV

External Voltage BNC Input Ranges1mVpk ~ 3Vpk [BNC Connector 3Vpk Max Input] 8 Ranges = 1mV, 3mV, 10mV, 30mV, 100mV, 300mV, 1V, 3V
External Voltage Input Accuracy0.04% Rdg + 0.1% Rng + (0.005% x kHz) + 3uV
Current Input
PPA3500 LC - Low Current 20Arms Shunt, 4mm Safety Connectors10mApk ~ 300Apk (20Arms) (10 ranges = 10mA, 30mA, 100mA, 300mA, 1A, 3A, 10A, 30A, 100A, 300A)
PPA3500 30Arms Shunt, 4mm Safety Connectors
30mApk ~ 1000Apk (30Arms) (10 ranges = 30mA, 100mA, 300mA, 1A, 3A, 10A, 30A, 100A, 300A, 1KA)
Internal Shunt Accuracy 20Arms
100mA~300Apk: 0.04% Rdg + 0.1% Rng + 0.005% x kHz) + 300uA

10mA~30mApk : 0.04% Rdg + 0.1% Rng + 0.01% x kHz) + 100uA

Internal Shunt Accuracy HC 30Arms300mA~1kApk: 0.04% Rdg + 0.1% Rng + 0.005% x kHz) + 900uA

30mA~100mApk : 0.04% Rdg + 0.1% Rng + 0.01% x kHz) + 300uA
External Current BNC Input Ranges1mVpk ~ 3Vpk 8 Ranges = 1mV, 3mV, 10mV, 30mV, 100mV, 300mV, 1V, 3V
External Current Input Accuracy0.04% Rdg + 0.1% Rng + (0.005%/kHz) + 3uV
Phase Accuracy
Range 3~100.005deg + (0.01deg x kHz)
Range 1+20.005deg + (0.02deg x kHz)
Power Accuracy
Range 3~10[0.1% + 0.1%/pf + (0.01% x kHz)/pf] Rdg + 0.05% VA Rng
Range 1+2[0.1% + 0.1%/pf + (0.02% x kHz)/pf] Rdg + 0.05% VA Rng
40Hz ~ 850Hz[0.06% + 0.1%/pf + (0.01% x kHz)/pf] Rdg + 0.03% VA Rng
Crest Factor
20 (Voltage and Current)
Sample Rate
1Ms/s on all channels, real time No-Gap
IEC Compliant Modes
IEC62301 Standby Power
Application Modes
PWM Motor Drive, Ballast, Inrush, Power Transformer, Standby Power
CMRR - Common Mode Rejection Ratio250V @ 50Hz – ≥ 1mA (150dB) 100V @ 100kHz – ≥ 3mA (130dB)
Measurement Parameters
W, VA, Var, pf, V & A – rms, rectified mean, AC, DC, peak, surge, crest factor, form factor, star to delta voltage, +ve Pk, -ve Pk
Frequency (Hz), Phase (deg), Fundamentals, Impedance
Harmonics, THD, TIF, THF, TRD, TDD
Integrated Values, Datalog, Sum and Neutral Values
Datalog (Up to 4 user selectable measurement functions (30 with PC software)
Datalog windowNo-Gap analysis, Minimum Window 5ms
MemoryRAM up to 5M records
Communication Ports
RS232Baud rate up to 38.4kbps, RTS/CTS flow control
LAN10/100 Base-T Ethernet auto sensing
GPIBIEEE488.2 Compatible.
USBUSB 2.0 and 1.1 Compatible
Analogue OutputBipolar ±10V (BNC)
Speed InputBNC Bipolar ±10V or Pulse count 1Hz to 1MHz 0.01% Rdg
TorqueBNC Bipolar ±10V or Pulse count 1Hz to 1MHz 0.01% Rdg
Standard Accessories
Power, RS232, USB
Connection Cables
36A 1.5m long 4mm stackable terminals. 1x red, 1x yellow, 2x black per phase
Connection Clips
4mm terminated alligator clips – 1x red, 1x yellow and 2x black per phase
CD - Rom
CommView2 (RS232 / USB / LAN) Command line, script based communication software
Communications Manual, Calibration certificate, Quick start guide
Mechanical and Environmental
972x272 dot full colour Super Wide Screen TFT, White LED Backlit
92H x 404W x 346D mm excluding feet
5.9kg (3 Phase), 8.8kg (6Phase)
Safety Isolation
1000Vrms or DC (CATII), 600Vrms or DC (CATIII)
Power Supply
90 ~ 265Vrms, 50 ~ 60Hz, 50VA Max
Operating Conditions
23⁰C ± 5⁰C Ambient Temperature ( or air intake temperature when rack mounted ), 20-90% Non-Condensing Relative Humidity.
Temperature coefficient ±0.01% per ⁰C of reading at 5-18⁰C and 28-40⁰C
