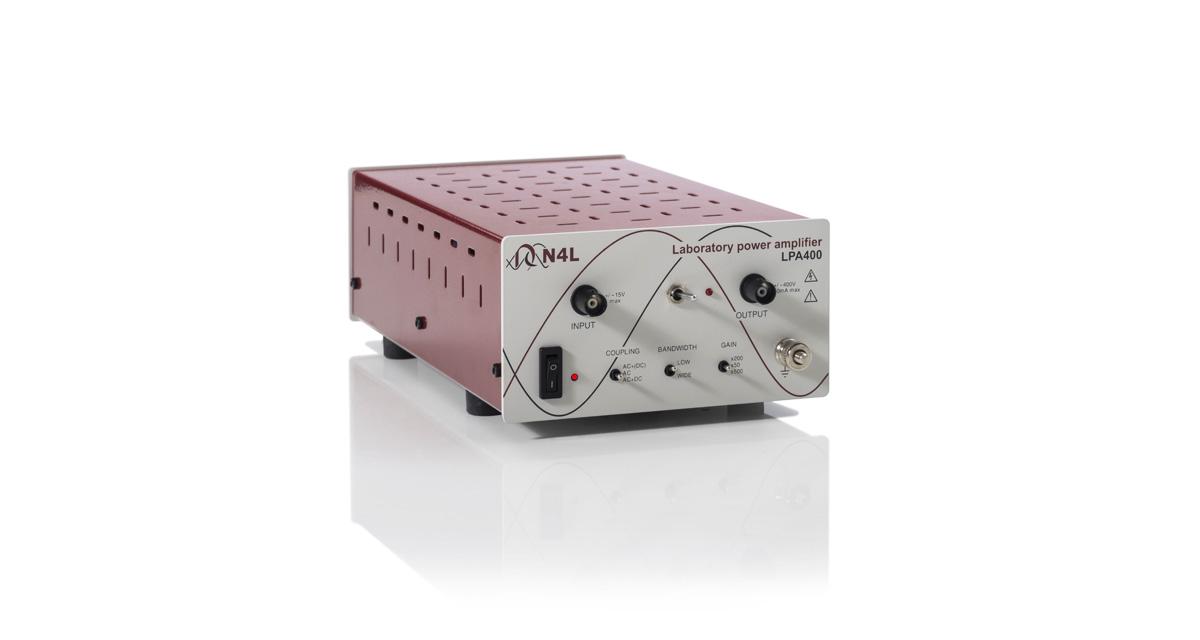

LPA400 is a wideband high volatge amplifier for an industrial or laboratory environment.
The LPA range of power amplifiers from Newtons4th Ltd are robust and reliable for use in a variety of industrial and laboratory applications. Designed originally for use with the PSM range frequency respsonse analyzers, they can also be used anywhere where there is a need to boost a signal either in voltage or current.
They combine DC accuracy with wide bandwidth to faithfully reproduce complex waveforms, driving loads that may be capacitive, inductive or resistive.

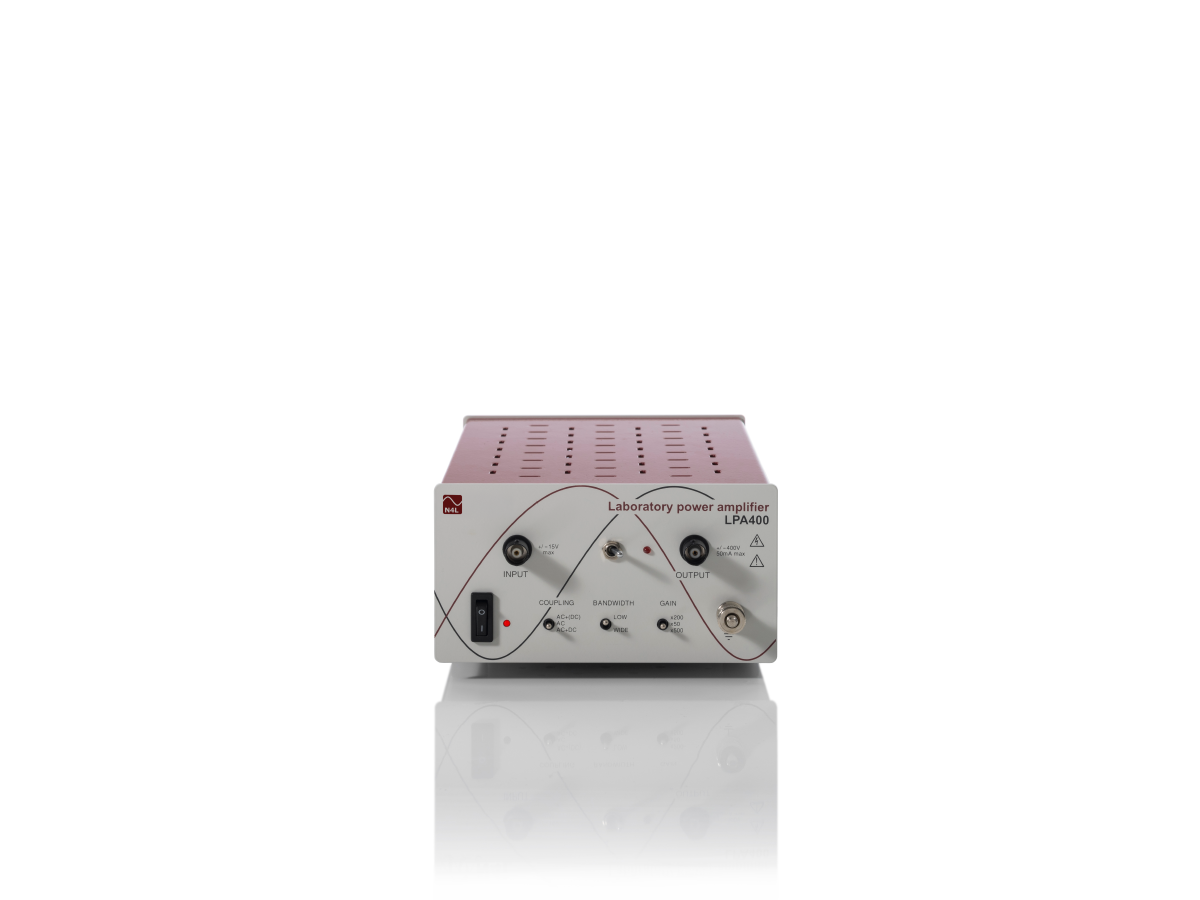

Optionally, the DC component can be eliminated with AC coupling, or can be reduced with AC+(DC) coupling. To limit high frequency noise, the input bandwidth can be reduced with a linear phase, 2nd order, low pass filter for low frequency applications.
Features & Benefits
| 400Vpk @ 50mApk from DC to 1MHz | AC, AC+DC or AC with reduced DC |
| Switch selectable gain | stable into a wide variety of loads |
| High slew rate | Selectable bandwidth |
| Brochures | Documentation |
| LPA Brochure April 2019 | LPA400.User Guide |
LPA400 Options, Software and Accessories
 |
Electrical Connection Input/Output Interfaces: |
- Input: Safety BNC
- Output: Safety BNC, 4mm Safety
 |
Probes and Probe Accessory Options: |
 |
Current Measurement Options: |
- HF010m 10mΩ/20Arms 1MHz Bandwidth Current Shunt
- HF100m 100mΩ/6Arms 1MHz Bandwidth Current Shunt
- HF470m 470mΩ/3Arms 1MHz Bandwidth Current Shunt
- HF01A 1Ω/1Arms 1MHz Bandwidth Current Shunt
 |
Carry Cases: |
- Soft Carry Case – Black Nylon Padded Case with accessory space, handle and strap
 |
PC Software (Free of charge): |
- PSMComm – PSM PC Interface Software, databasing, graphs, real time data display
- PSMSoft – Labview Executable with PSM, including Nyquist Simulation
Application Notes and Related Articles
For application notes please see the app note section of our Knowledge Database
| MEASUREMENT SPECIFICATIONS | ||
|---|---|---|
| INSTRUMENT | LPA400A | LPA400B |
| Input Connector | Isolated BNC | Isolated BNC |
| Input Impedance | 10KΩ | 10KΩ |
| Peak Input Voltage | ±8V | ±3.6V |
| Input Common Mode Range | ±40V | ±40V |
| Input Offset Voltage | 5mV (max) 1.5mV (typ) | 5mV (max) 1.5mV (typ) |
| Input Coupling | ac, ac+dc, ac+ (dc) | ac, ac+dc, ac+ (dc) |
| AC Coupling Filter -3dB | 16Hz | 16Hz |
| (dc) Gain Factor | 0.1V | 0.1V |
| Full Power Bandwidth | 100kHz @ 800V pk-pk 1MHz @ 80V pk-pk | 200kHz @ 360V pk-pk 1MHz @ 80V pk-pk |
| Low Bandwidth -3dB | 80kHz | 80kHz |
| Low Bandwidth Filter Attenuation | 40dB / decade | 40dB / decade |
| Low Bandwidth Filter Type | linear phase | linear phase |
| Gain Options | x50, x200, x500 | x50, x200, x500 |
| Low Frequency Gain Accuracy | 0.1% | 0.1% |
| Output Connector | Isolated BNC | Isolated BNC |
| Continuous Output Current | 0.05Arms | 0.1Arms |
| Peak Output Current | 0.075Apk | 0.15Apk |
| Peak Output Voltage | ±400V | ±180V |
| Slew Rate | 500V / μs | 500V / μs |
| Operating Temperature Range | 0 - 40 ⁰C | 0 - 40 ⁰C |
| Size | 8.5 x 15 x 25cm | 8.5 x 15 x 25cm |
| Weight | 2.5Kg (approx) | 2.5Kg (approx) |

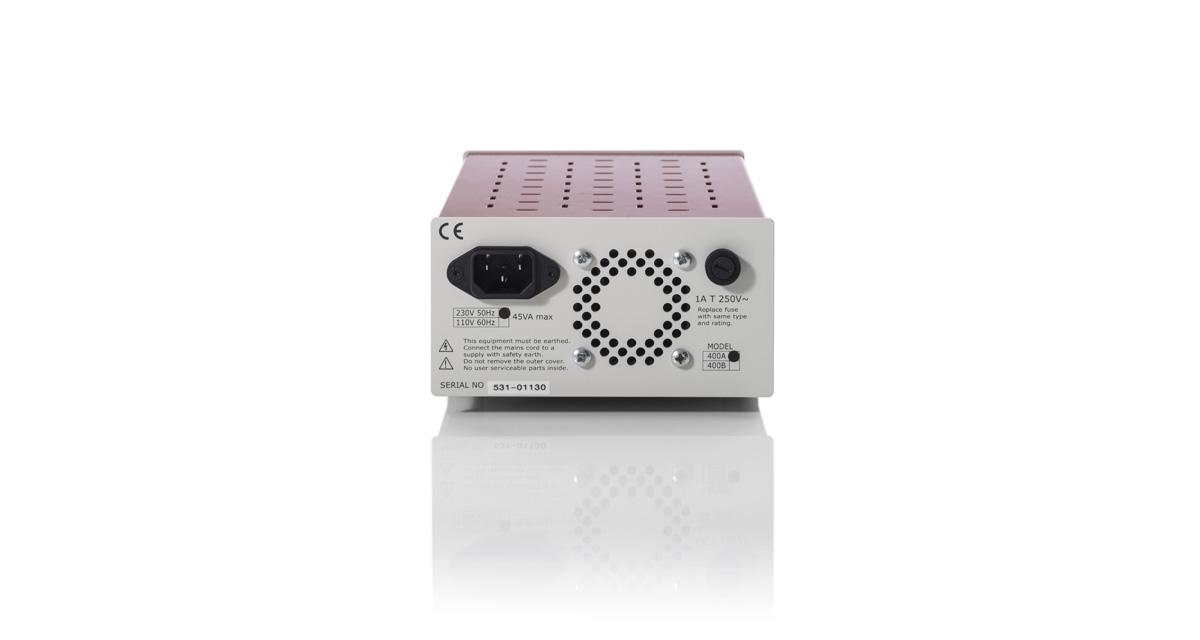

| Power Source | 230V ±10%, 50Hz (UK) 115V ±10%, 60Hz (USA) | 230V ±10%, 50Hz (UK) 115V ±10%, 60Hz (USA) |
| Power Consumption | 45VA (max) | 45VA (max) |
