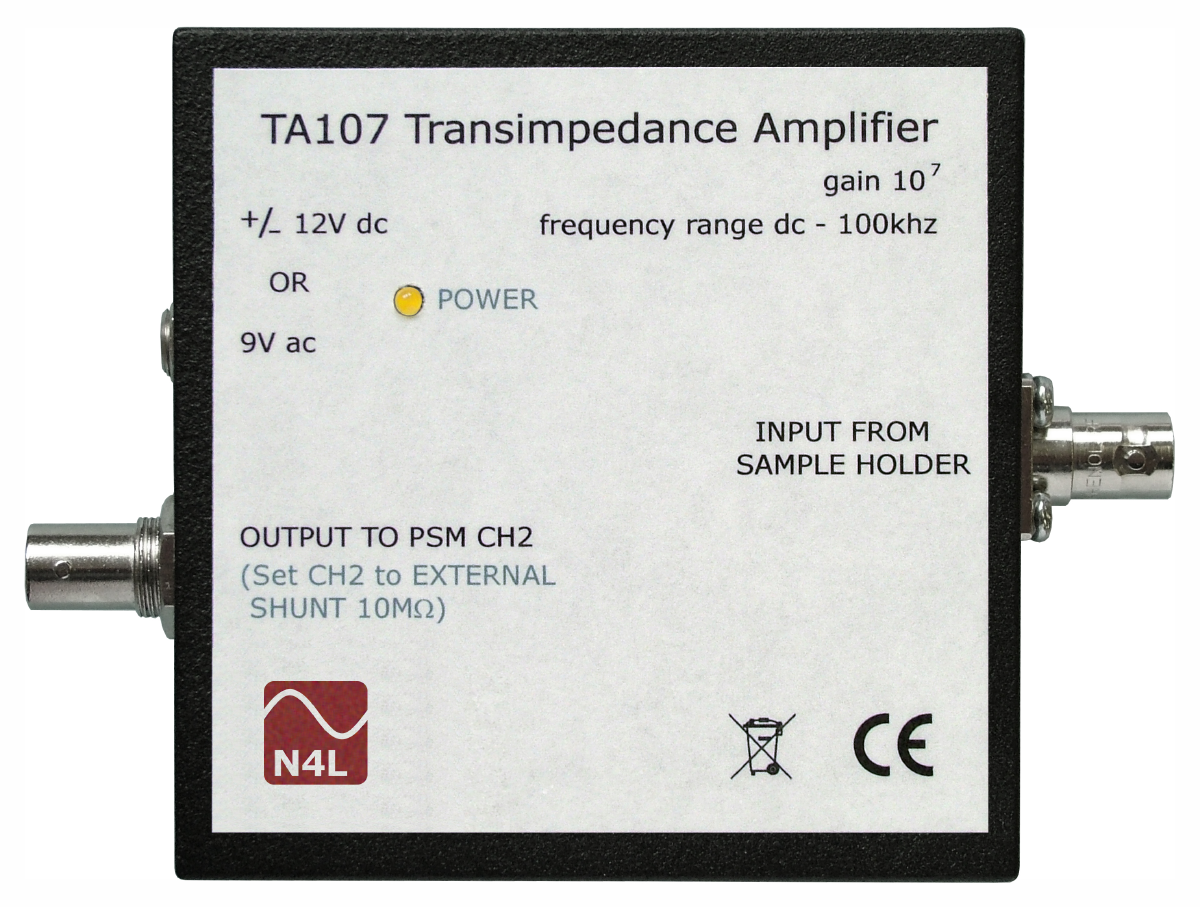

TA107 Transimpedance Amplifier

Low noise, wide bandwidth transimpedance amplifier with 10MV/A gain

Above 500MOhm, the measurement techniques utilized within the ‘LCR Active Head’ or ‘IAI/IAI2’ are not ideal, due partly to the exceptionally low current associated with high impedance analysis and also the parasitic capacitance of the connection leads to a sample under test.

The TA107 Transimpedance Amplifier provides a solution for high impedance analysis applications by measuring the current flowing through a component or material under test with an innovative earth referenced transimpedance amplifier technique. The TA107 Transimpedance Amplifier supplements our existing impedance analyser range to provide a solution for a wide range of measurement applications.

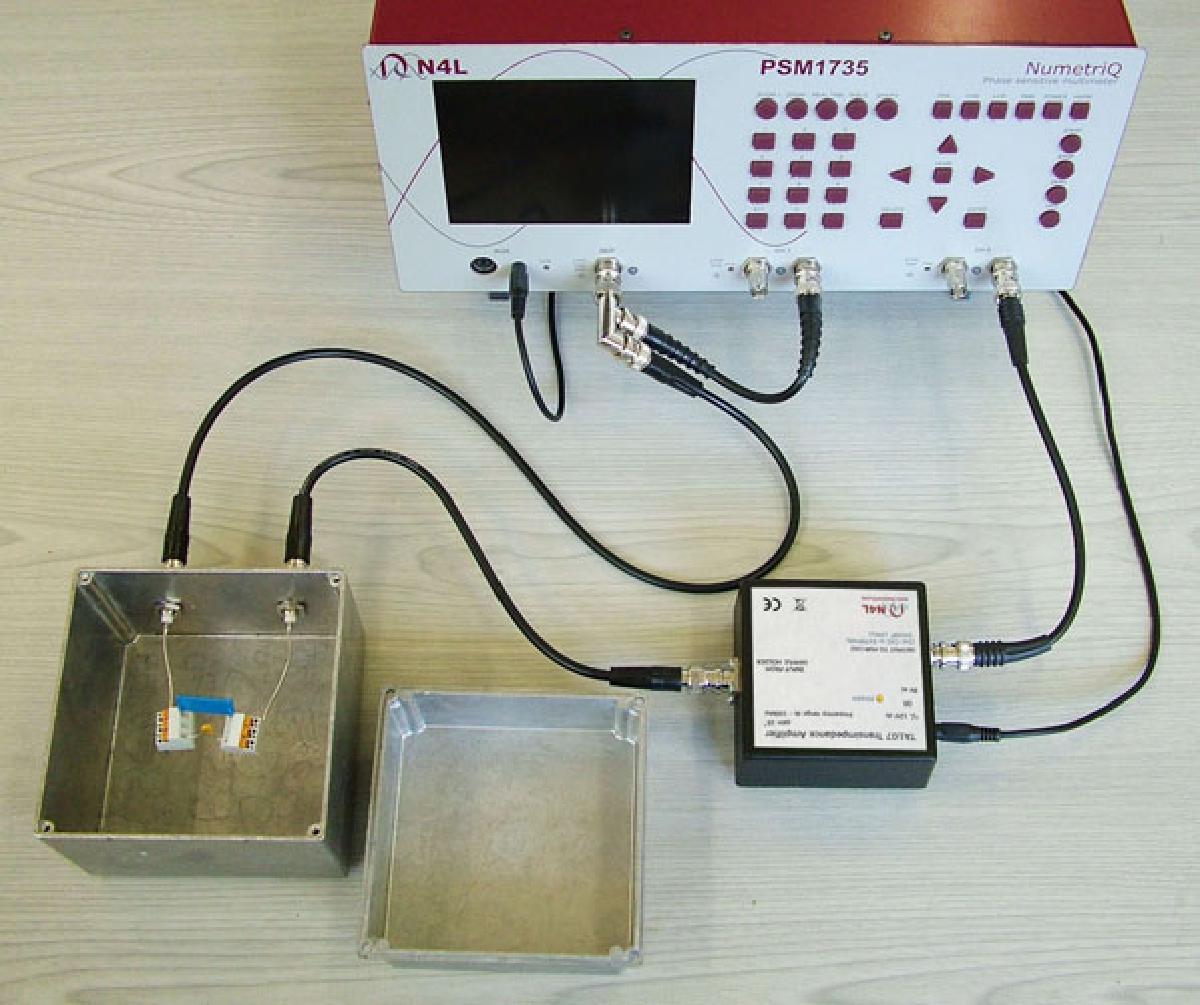

Example test setup configurations would be as follows;

PSM1700/1735/3750 + TA107  – Impedance range of 1MΩ to 100GΩ

PSM1700/1735/3750 + TA107  + LPA400 – Impedance range of 10MΩ to 1TΩ

Product Images

Features & Benefits

1MΩ to 100GΩ range with PSM1735 DC  to 100kHz Frequency range
Adaptor or direct PSM power Simple connection and operation
